• Carbon Steel Bar/Rod

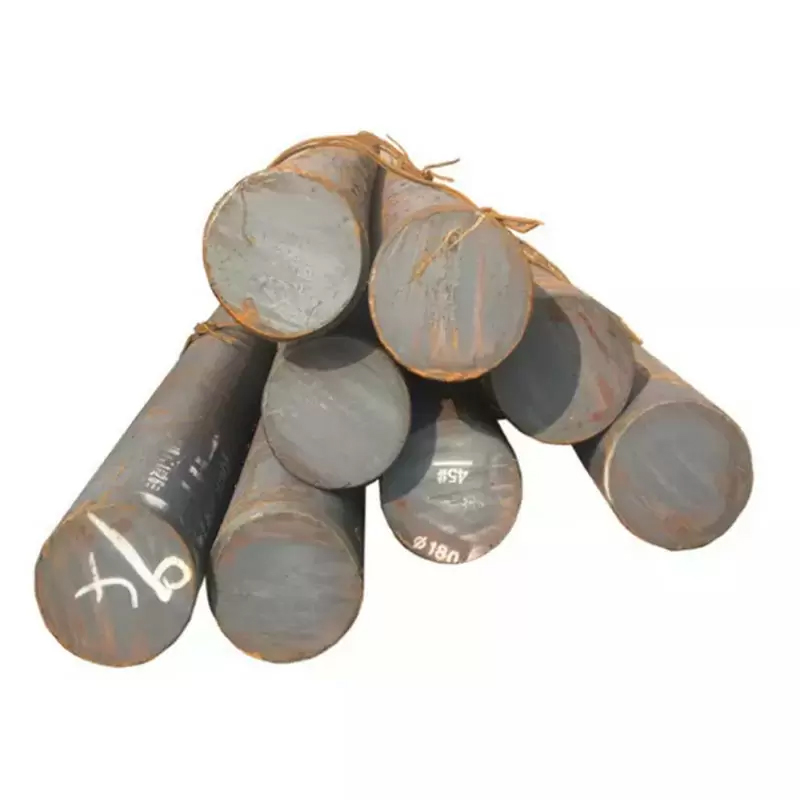

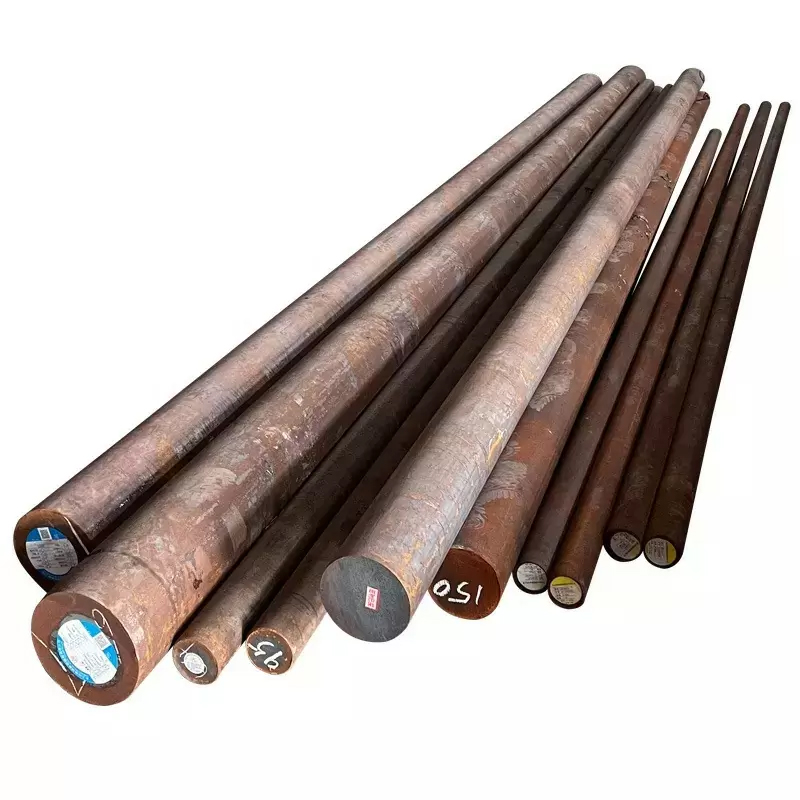

ASTM A36 Carbon steel bar/rod


Round steel is a long strip of steel with a solid cross section. Its specifications are expressed in millimeters in diameter. They are divided into three types: hot-rolled, forged, and cold-drawn. The hot-rolled specifications are 5.5-250 mm. They are often used as steel bars, bolts, and various Mechanical parts, round steel larger than 25 mm is mainly used to manufacture mechanical parts and seamless steel tube billets.

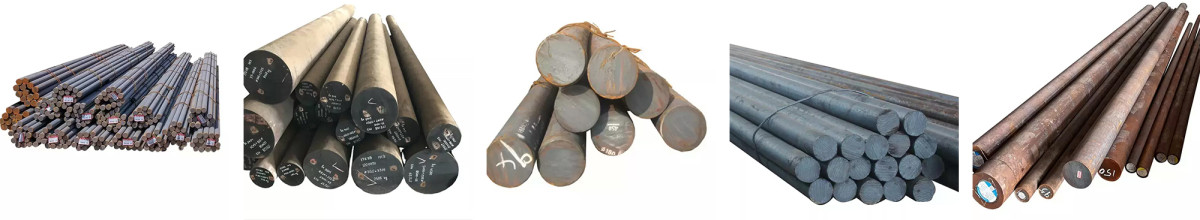

Carbon steel rod.jpg

Product Name  carbon steel round bar
Place of Origin Shandong, China
Standard  AiSi, ASTM, bs, DIN, GB, JIS
Grade  HRB335/HRB400/HRB500
Length   6m/9m/12m or as customer request
Tolerance  ±1%
Tensile strength300N/mm² , 360N/mm² , 435N/mm²
Technique  Hot Ribbed Steel Rebar
Price TermCIF CFR FOB EX-WORK
MOQ 1 Ton
Payment Term  30%T/T Advance + 70% Balance
Packing  Standard Sea-worthy Packing
Type   Plate
Certification ISO,CE


Chemical Composition

CCuFeMnPSiS
0.25~0.2900.2098.01.030.0400.2800.050


Mechanical Behavior

A36ultimate tensile strengthTensile strength and yield strengthBreak Elongation (in 200mm)Break Elongation (in 50mm)modulus of elasticityVolume modulus (typical value of steel)Poisson ratiomodulus of shearing
the metric system400~550MPa250MPa20.0%23.0%200GPa140GPa0.26079.3GPa
British system58000~79800psi36300psi20.0%23.0%29000ksi20300ksi0.26011500ksi



Physical Property

physical propertythe metric systemBritish system
density7.85 g/cm30.284 lb/in3


Applied Range

Bolt, riveted or welded structures for bridges, construction and oil rigs, etc.

 It is used for forming storage tanks, bin, bearing plate, fixture, ring, formwork, clamp, fixture, sprocket, cam, gear, bottom plate, forgings, decoration engineering, piles, supports, automobile and agricultural equipment, frame, mechanical parts, etc.


Peer Material

Guo Biao GBEuropean standard ENAmerican-Standard ASTMDe standard DIN, WNrday mark JISThe French standard, AFNORBS BSCanada HG
Q235BS235JRA283CSt37-2SM400AE24-240A/40B230G
Italy UNIIndia ISSwitzerland SSONORM, AustraliaNorway NSSpain UNEinternational standard ISOPortuguesa NP
Fe360BIS20621311/1312RSt360BNS12123AE235B-FNE235


Product Details

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

Carbon Steel.jpg

Packaging and Shipping

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.

容器 1@1x

Partners

The company has sufficient inventory, supports customization, and has complete varieties and specifications.

Now we can provide 1000,000 tons for the clients all over the world every year.

Certificate Qualification

Shandong Zhongxuan Steel Group Co.,Ltd. Is a modern integrated production enterprise which incorporates the processing & manufacturing of Cold rolled Steel, Hot rolled steel, Galvanized Steel, Galvalume Steel, and Prepainted Steel Products, sales and logistics.
